Built for structural engineering · IFC4 & IFC2X3
Generate a
structure
Describe a piperack, shelter, industrial building or platform in plain language. Get a schema-valid IFC model in under 3 minutes.
No installation required · IFC 4 & IFC2X3
Capabilities
Everything you need for concept-stage BIM.
From a single prompt to a downloadable, viewer-ready IFC model in under 3 minutes.
Industrial Structure Generation
Describe a piperack, shelter, canopy, industrial building, platform, or pit in plain English. The AI generates the complete 3D structural model including columns, beams, and foundations.
IFC4 & IFC2X3 Output
Choose your schema: IFC4 by default, IFC2X3 on request for legacy workflows. Files are schema-valid and ready to use into Tekla Structures, Revit, and any IFC-compatible BIM tool.

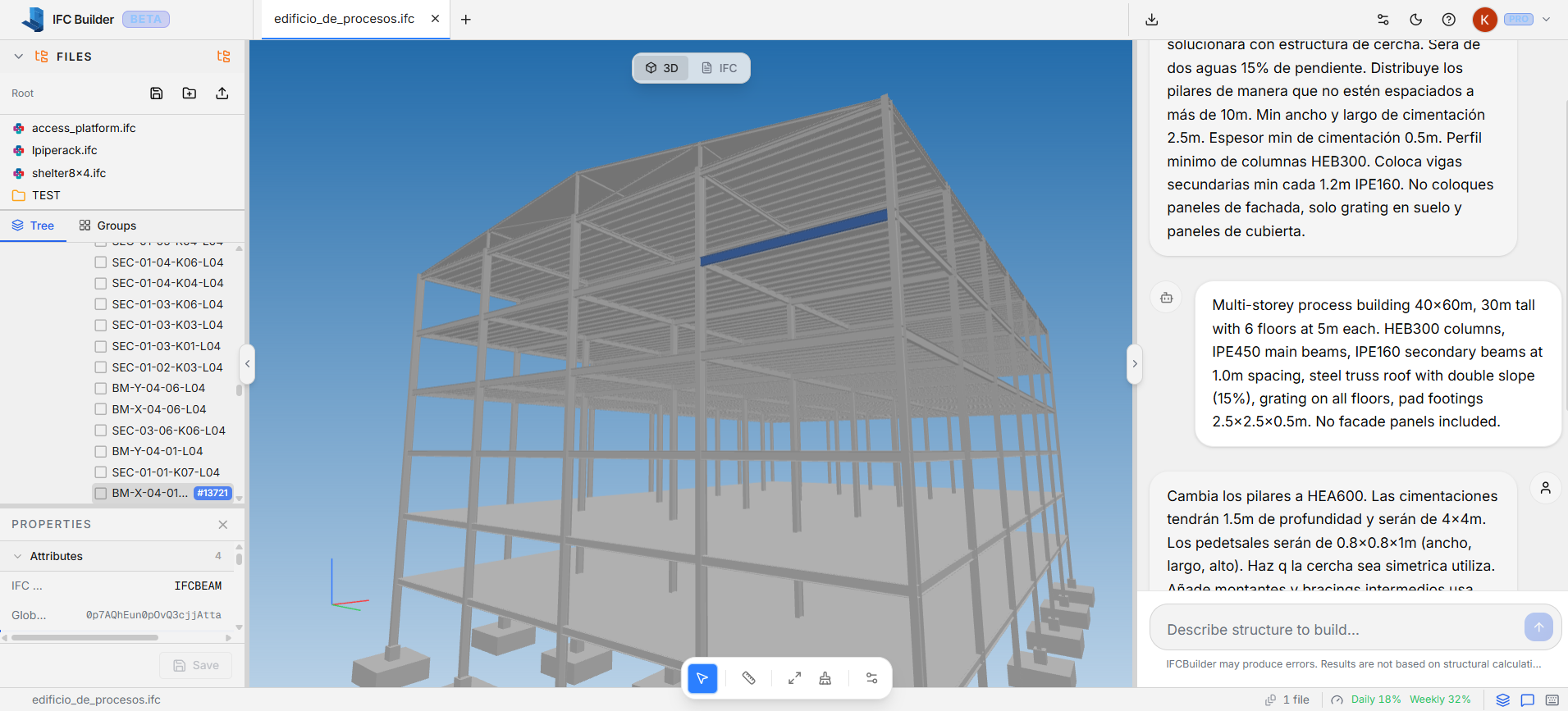

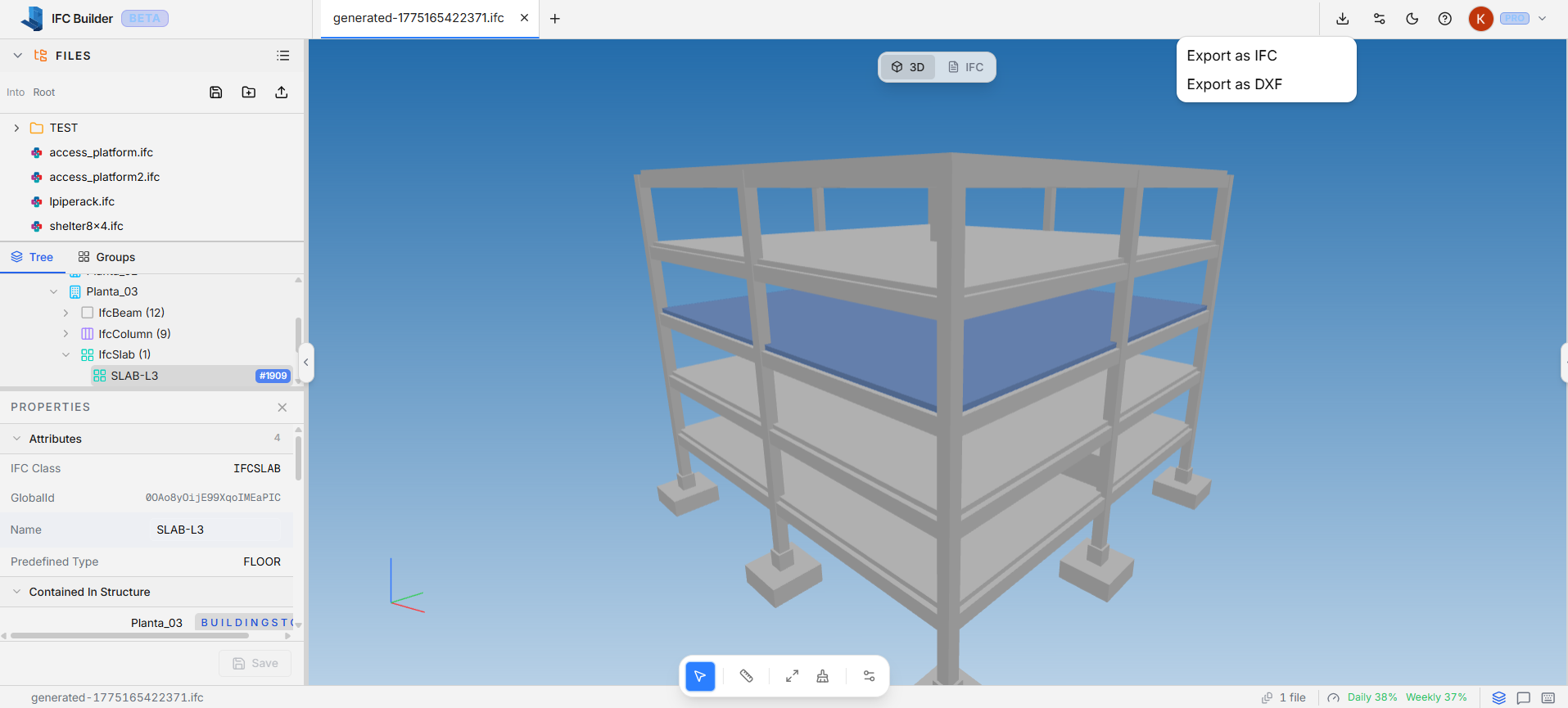

Optimized for Industrial Typologies

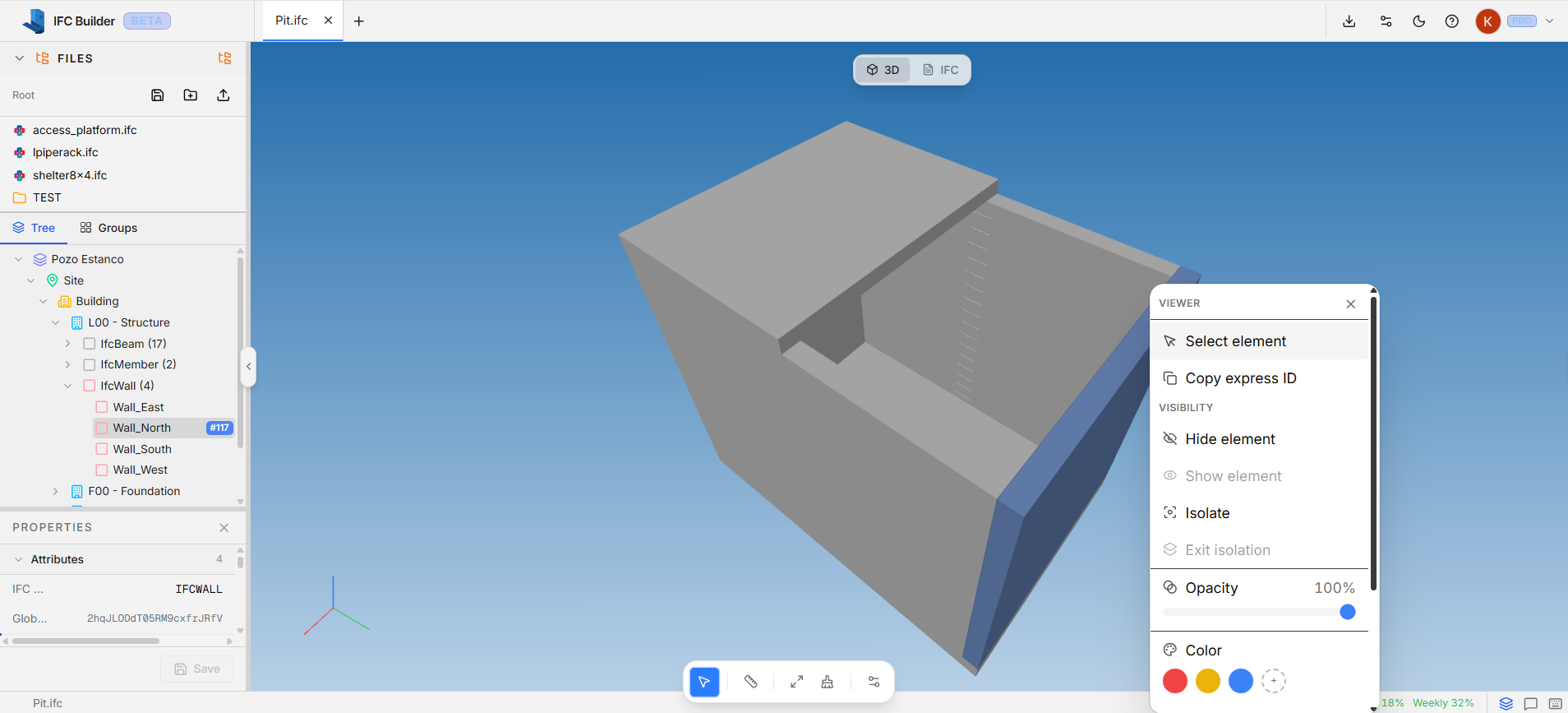

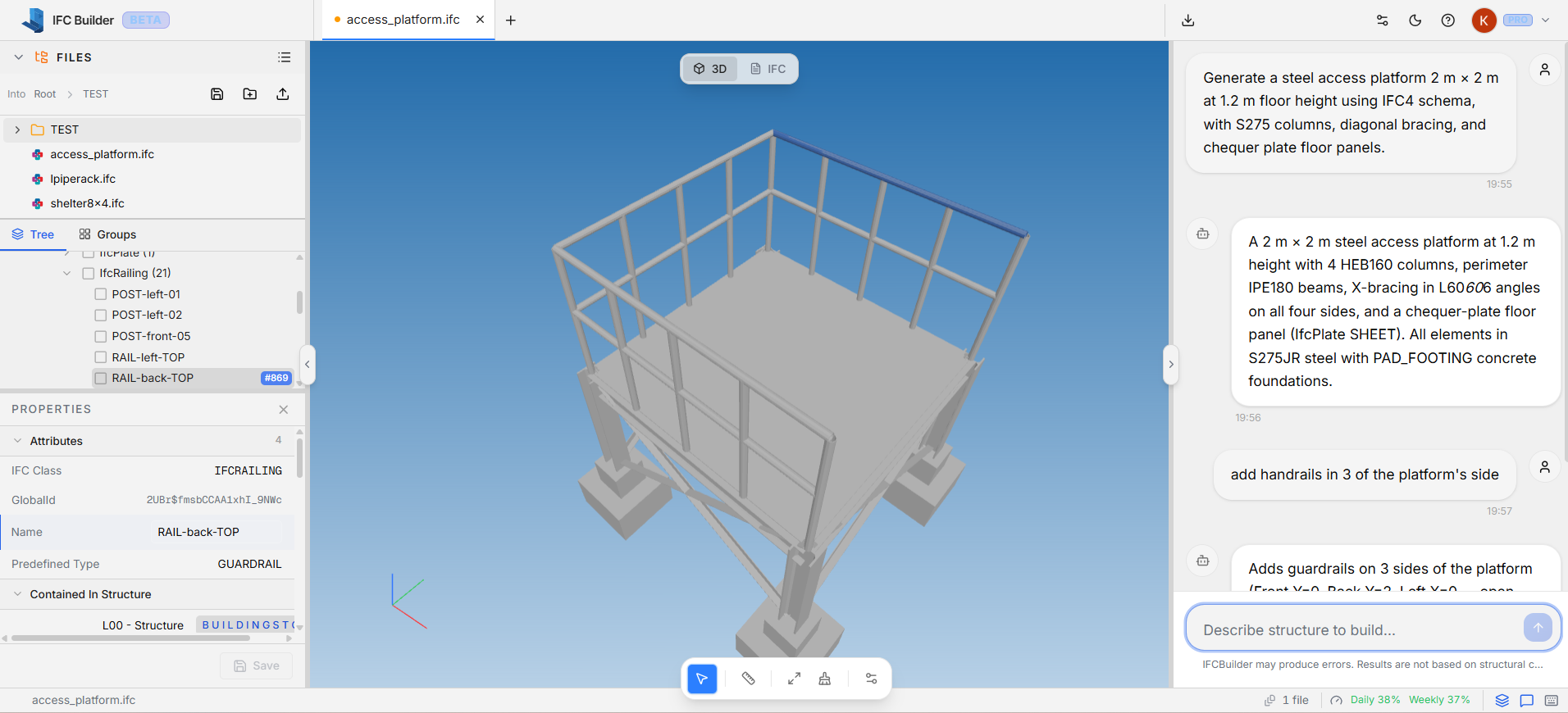

Piperacks, shelters, canopies, process buildings, industrial bays, walkway platforms, and pits. More typologies on the roadmap.
Integrated 3D Viewer with Live Chat
The viewer updates in real time as you refine your model through chat. Ask questions about any element — dimensions, profiles, materials — and get answers in context without leaving the browser.
IFC + DXF Download
Export both formats instantly: the IFC STEP file for your BIM workflow and a DXF for 2D documentation or team coordination. No queue, no plugins, no desktop software required.
Model Repository & Chat History
Every model you generate is saved to your personal library. Return to any session, resume the conversation, and continue refining your model exactly where you left off.
What IFC Builder is built for today
Optimized for concept and basic engineering stages of industrial structural projects. Complex or highly customised structures may not generate optimally in this version. Models created outside IFC Builder cannot currently be imported for modification. We're actively working on it.
How it works
Three steps from prompt to BIM.
01
Describe your industrial structure

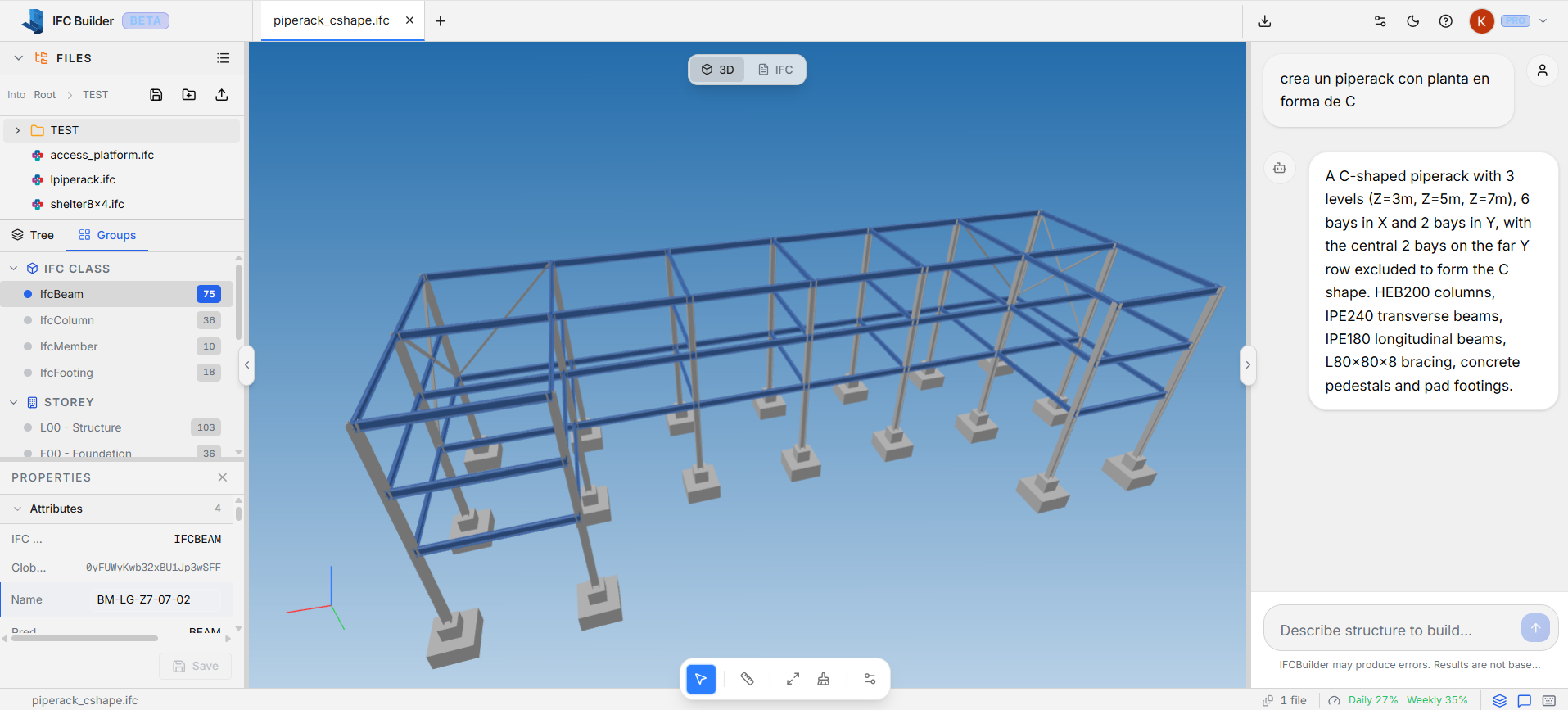

Type a prompt like "Generate a 5 bay piperack, 24m long, 6m wide, two levels at 4m and 7m, S275 steel". As brief or as detailed as your project stage requires.
02
AI generates the 3D model
The engine produces a fully structured IFC 4 model with correct element hierarchy, structural profiles, materials, and foundations. Typical generation time: under 3 minutes. The model renders live in the integrated viewer.
03
Download, import, and keep working
Export IFC and DXF files instantly. Import into Tekla Structures as native elements, add to your federated model in Navisworks, or use as reference in Revit and ArchiCAD.
Contact
Get in touch.
Questions about a specific use case, pricing, or an integration? Send us a message and we'll get back to you.
